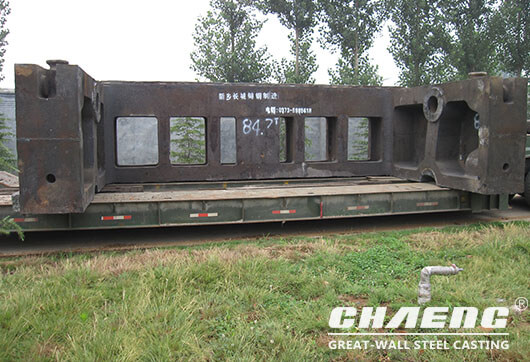

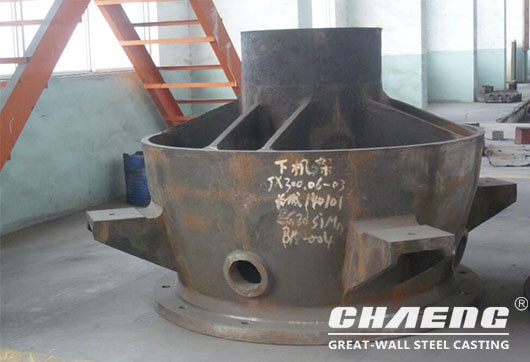

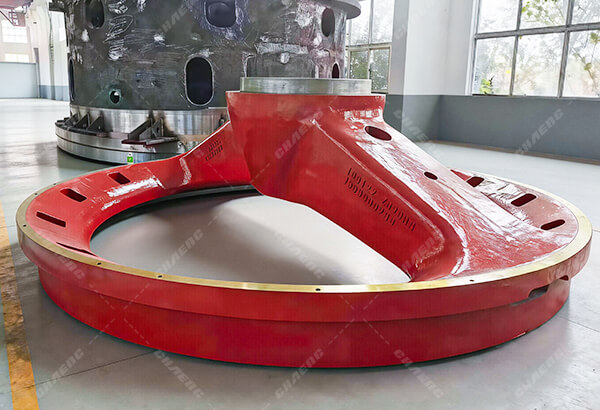

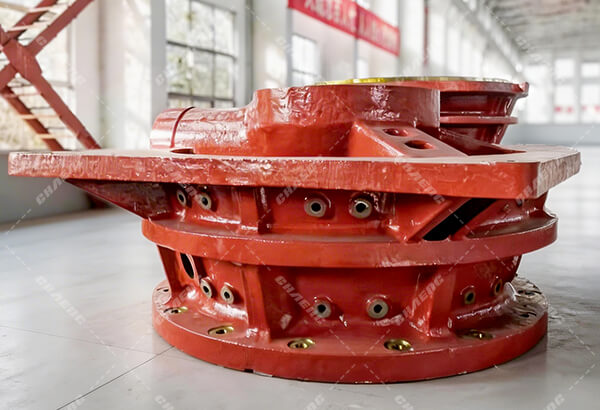

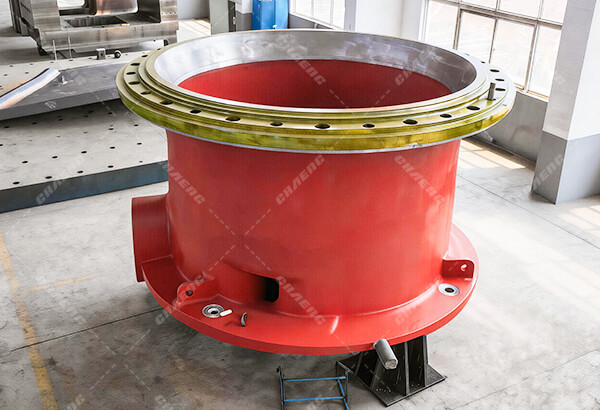

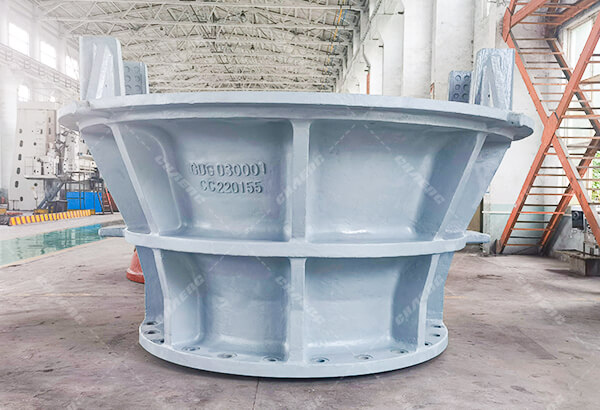

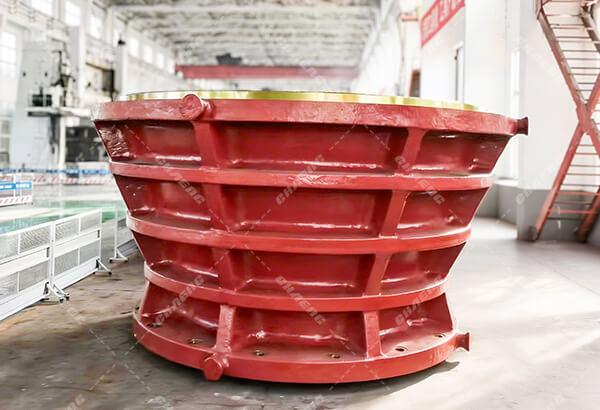

Crusher frame

The frame is the skeleton structure of large crusher such as cone crusher and jaw crusher, which supports all the working parts and its structural design has a great influence on the production. CHAENG continuously sums up casting experience and improves process technology to produce industrial crusher pare parts such as cusruher frame, cone cruhser concave, cone crusher mantle with better performance and longer service life.

specification

Weight1-50 Tons

MaterialZG270-500

ApplicationMining, cement, chemical and other industries

CustomizableYes, based on user's drawings

Our Advantages

1. CHAENG can customize crusher frames according to the drawings of customers for various types of cone crusher, impact crusher, jaw crusher and others.

2. CHAENG uses high-strength steel, and optimize the crusher frame according to operating characteristics of crushers, so that the impact resistance and the wear resistance of the frame are greatly enhanced to prolong the service life.

3. CHAENG can provide a full range of product solutions to meet the specialized and personalized demands of customers.

4. Quality assurance

The fabrication route is governed by the provisions of the implemented Quality System ISO 9001:2015.

The standard documentation ensures the full traceability of every process step, including heat treatment, chemical composition test, mechanical properties test, non-destructive test.

Production Process

  • Simulation & analysis

    Simulation & analysis

  • Wood pattern

    Wood pattern

  • Sand mould

    Sand mould

  • Smelting

    Smelting

  • Molten steel test

    Molten steel test

  • Pouring

    Pouring

  • Sand cleaning

    Sand cleaning

  • Heat treatment

    Heat treatment

  • Finishing

    Finishing

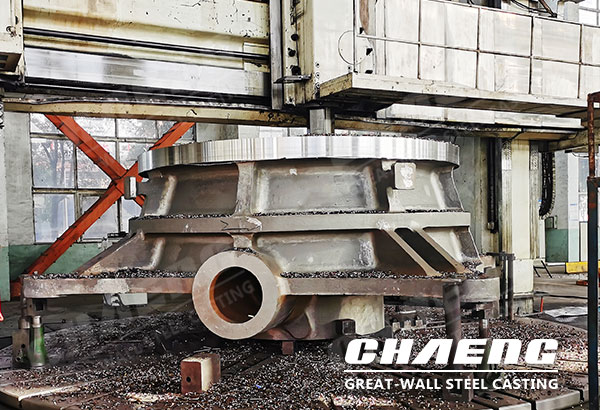

  • Machining

    Machining

  • Non-destructive testing

    Non-destructive testing

  • Packaging & delivery

    Packaging & delivery

Customer cases

CHAENG take customers’ demands into full consideration, and has been recognized by domestic and foreign customers. One Russian company has been purchasing CHAENG crusher frame from 2012 to present, the customers said CHAENG crusher frame matched their large crusher well with better wear resistance, quality and service life, CHAENG was their trusted partner all the time.

large crusher manufacturer in Henan purchased CHAENG crusher frame, and the frame is very stable during operation.

crusher frame crusher bottom frame
