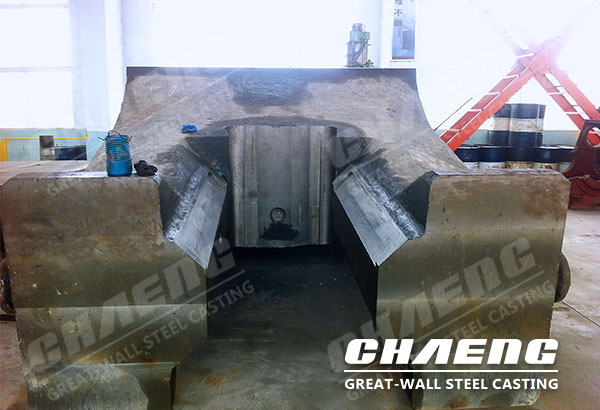

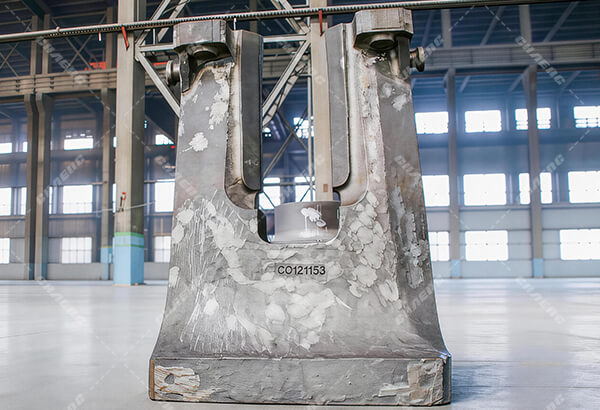

Ceramic Press Frame

The press frame is the fatigue resistance, impact resistance and pressure parts of the press machine, which accounts for more than 30% of the total manufacturing cost of the press. The press frame directly determines the performance and service life of the press. CHAENG casting press frame has good vibration suppression performance and strong bearing capacity. CHAENG is a good choice for many press equipment manufacturers.

Ceramic Press Frame

specification

Weight10-50T

MaterialZG270-500

ApplicationAaerospace, metallurgy and other industries

CustomizableYes, based on user's drawings

Our Advantages

1. CHAENG has many years of experience in the press frame casting, the design of the press frame structure is more reasonable, it can reduce the weight of the press to improve the stiffness of the press;

2. In order to greatly enhance the wear resistance of the press body and impact resistance, CHAENG selects high-quality ZG270-500 material, and uses unique heat treatment technology, to solve the likely defect problem at R angle and improved the quality of the press frame body;

3. In the press frame casting process, CHAENG strict controls aw materials, sample testing, product testing, quality assessment and so on, and is equipped with Germany OBLF company GS1000 vacuum direct reading spectrometer, carbon and sulfur high-speed analyzer, digital ultrasonic flaw detector, multi-purpose magnetic flaw detector and other advanced physical and chemical testing facilities, to perform 360 ° nondestructive testing on each product.

4. CHAENG has strong casting strength and rich experience. It is able to manufacture press frame and other parts within short casting period.

Production Process

  • Simulation & analysis

    Simulation & analysis

  • Wood pattern

    Wood pattern

  • Sand mould

    Sand mould

  • Smelting

    Smelting

  • Molten steel test

    Molten steel test

  • Pouring

    Pouring

  • Sand cleaning

    Sand cleaning

  • Heat treatment

    Heat treatment

  • Finishing

    Finishing

  • Machining

    Machining

  • Non-destructive testing

    Non-destructive testing

  • Packaging & delivery

    Packaging & delivery

Customer cases

 CHAENG press frames are used in press equipment manufacture of Chongqing, Hangzhou, Jiangsu, Zhejiang and many other well-known enterprises.

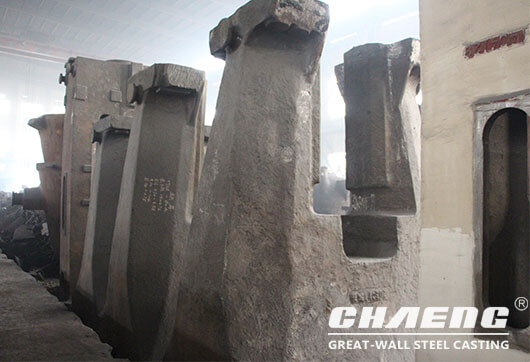

press frame sale

The press frame ready to send to Huhan forging equipment factory in CHAENG stocking area
