Rotary kiln riding ring - kiln tyre

28 May 2018 UTC+8Views:

Rotary kiln tyre, also known as the riding ring, is used to transfer all gravity of the cylinder (including the gravity of refractory bricks, internal devices and materials, etc.) to the support roller, and enables the cylinder rotate smoothly on the support roller, so the kiln riding ring must have sufficient strength and durability. At the same time, the riding ring is a part that strengthens the radial stiffness of kiln cylinder, so it also should have sufficient rigidity.

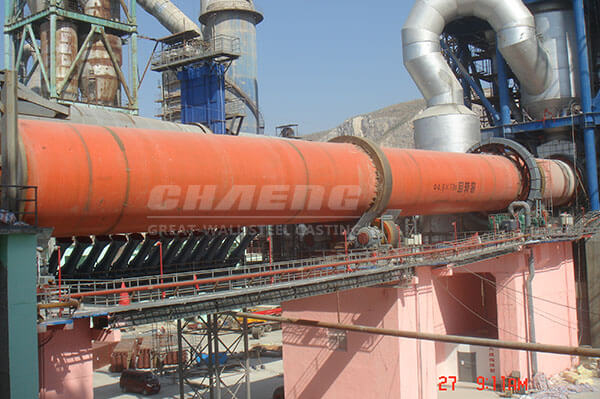

rotary kiln

Rotary kiln riding ring have the following cross-sectional shapes:

1. Rotary kiln rectangular riding ring

Its cross section is a solid rectangular shape. The shape is simple, so the quality is easy to guarantee. The general service life is longer than the box-shaped riding ring, and its application is more extensive; however, its rigidity is relatively small, the material utilization is unreasonable, and the heat dissipation conditions are poor.

2. Rotary kiln box-shaped riding ring

Its section is hollow box shape, with good thermal conditions, high rigidity, but materials is hard to be used reasonably. The integrated structure of the riding ring and the cylinder can avoid the "contraction neck temperature stress" between them, and the riding ring can fully exert its reinforcing effect on the kiln, and at the same time, the material of the riding ring can be reasonably used, the manufacturing and installation work can be simplified, and the operation can be facilitated.

CHAENG is a large steel casting company with large scale casting equipment, complete machining and testing facilities: 2 sets of 30T basic electric arc furnace, smelting steel with once 140T; 7M *12M and 5M*7M 2sets natural gas heat treatment furnace; 22 sets of hoisting equipment, Max. lifting capacity is 150 tons; Maximum elevating capacity is 150 tons; Own the GS-1000 vacuum direct reading spectrometer, carbon-sulfur analytical instrument, microcomputer three-speed analytical instrument;Mechanical properties testing machine; Low temperature impact testing machine;UT, MT inspection equipment etc.

CHAENG is able to provide customers with high-quality kiln riding ring according to users’ drawings.

Weight: 5-80T

Material: ZG45, ZG42CrMo, etc.

Other specifications: according to drawings and demands

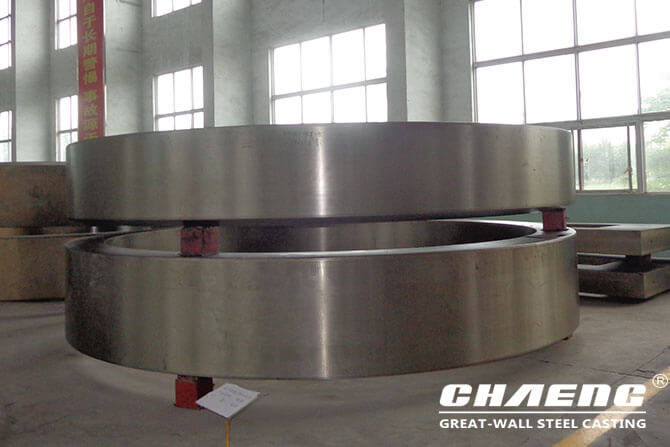

rotary kiln riding ring

Our company's integrity, strength and product quality have been well received in the industry. Welcome friends from all over the world come to visit our company for guidance and business negotiation!
